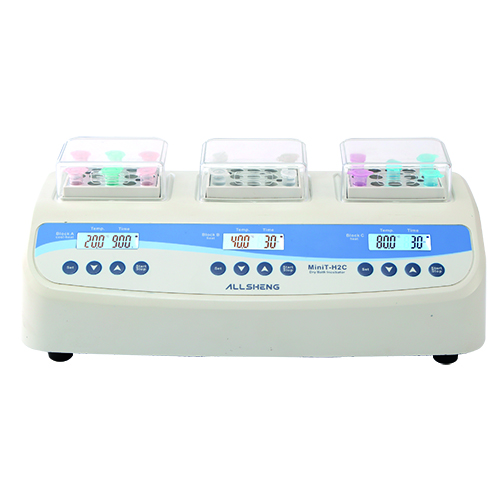

MiniT-H2C / MiniT-H3 - Heating block

Beskrivning

MiniT-H2C / MiniT-H3 – Heating block

1. working area dimension: 3 individually controlled

2. LCD display. It is easy to setup and use

3. Simultaneously display the set and actual time, temperature,Auto-stop and sound-alert after program completed

4. MiniT-H3 has a heating function only and its temperature ranges from RT+5~100°C

5. MiniT-H2C has cooling/heating functions and its temperature ranges from 0°C~99.9°C

6. Temperature deflection adjusting meet with different demands

MiniT-H2C / MiniT-H3 are 3-in-1 mini dry bath incubator. The MiniT-H2C is a heating and cooling incubator and the MiniT-H3 is a heating only incubator with 3 individually controlled mini dry bath. Many aluminum blocks are available covering a range of tube sizes from 0.2ml, 0.5ml, 1.5ml or 2.0ml tubes blocks.These are suitable for labs with heavy work load.

Code Description

AS-01230-00 MiniT-H2C 3-in-1 mini dry bath AC100~240V, 50/60Hz, 120W

AS-01220-00 MiniT-H3 3-in-1 mini dry bath AC100~240V, 50/60Hz, 120W

MiniT-H2C / MiniT-H3 – Dry Bath Incubator

Model	MiniT-H2C			MiniT-H3
Working area	Block position 1	Block position 2	block position 3	Block position 1	Block position 2	block position 3
Temperature Control Range	0°C~99.9°C	RT.+5~99.9°C	RT.+5~99.9°C	RT.+5~99.9°C	RT.+5~99.9°C	RT.+5~99.9°C
Heating Time(25 to 99.9°C)	≤20min	≤20min	≤20min	≤20min	≤20min	≤20min
Cooling Time(25 to 0°C)	≤25min (*)	—–	—–	—–	—–	—–
Temperature Control Accuracy	≤ 0.5°C			≤ 0.5°C
Temp. Control Accuracy @37°C	0.2°C			0.2°C
Display Accuracy	0.1°C			0.1°C
Timing Range	1~999h or 1~999 min or 1~999sec			1~999h or 1~999 min or 1~999sec
Block Quantity	3			3
Power	DC12V,120W			DC12V,120W
Dimension(mm)	360 × 180 × 150			360 × 180 × 150
Net Weight	3kg			3kg

*1. Tested in ambient temperature < 25°C

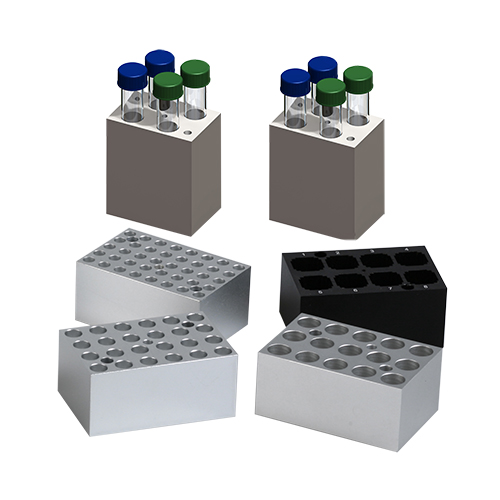

Block for MiniT-H2C and H3 series

Code	Type	Description
AS-01131-01	A-MiniT	40×0.2ml
AS-01131-02	B-MiniT	24×0.5ml
AS-01131-03	C-MiniT	15×1.5ml
AS-01131-04	D-MiniT	15×2.0ml
AS-01131-05	E-MiniT	8–12.5×12.5x32mm
AS-01131-06	F-MiniT	4x15ml
AS-01131-07	G-MiniT	2x50ml
