| Temperature accuracy |
±0.1 °C at 37 °C |
±0.1 °C at 37 °C |
| External height (with lid/door open) |
115.8 cm (45.6 in) excluding base |
115.8 cm (45.6 in) excluding base |
| Timer |
0.01 – 95.59 h, continuous |
0.01 – 95.59 h, continuous |
| Power supply |
230 V, 50/60 Hz |
230 V, 50/60 Hz |
| Dimensions (W × D × H) |
118.2 × 86.9 × 63 cm / 46.5 × 34.2 × 24.8 in |
118.2 × 86.9 × 63 cm / 46.5 × 34.2 × 24.8 in |
| Weight w/o accessories |
198 kg / 437 lb |
186 kg / 410 lb |
| Audible and visual alarms |
yes |
yes |
| Temperature uniformity |
±0.25 °C at 37 °C and 250 rpm |
±0.25 °C at 37 °C and 250 rpm |
| Available program modes |
› Constant speed and temperature
› Time shaking mode up to 95:59 hours
› Multi step programming/cycling – Parameters include shaking speed, temperature, time and (optional) photosynthetic light intensity |
› Constant speed and temperature
› Time shaking mode up to 95:59 hours
› Multi step programming/cycling – Parameters include shaking speed, temperature, time and (optional) photosynthetic light intensity |

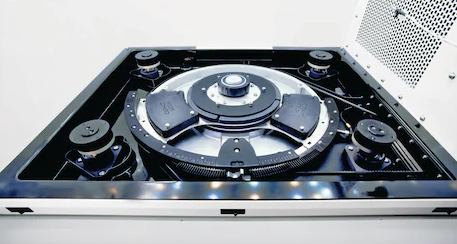

| Drive mechanism |
Eppendorf X-Drive with semi-automated counterbalance setting |
Eppendorf X-Drive with semi-automated counterbalance setting |
| Data export interface |
USB, Ethernet |
USB, Ethernet |

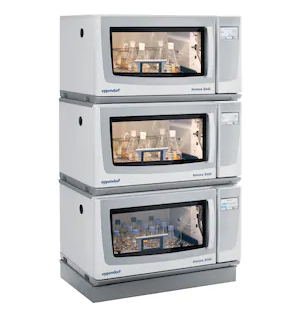

| Benchtop (B), Under Bench (U), Floor (F) or Stackable (S) |
F, S (x3) |
F, S (x3) |
| Memory |
Non volatile with automatic power failure restart |
Non volatile with automatic power failure restart |
| Motor type |
Solid state, DC brushless motor |
Solid state, DC brushless motor |
| Platform size |
76 × 62 cm (30 × 24 in) |
76 × 62 cm (30 × 24 in) |

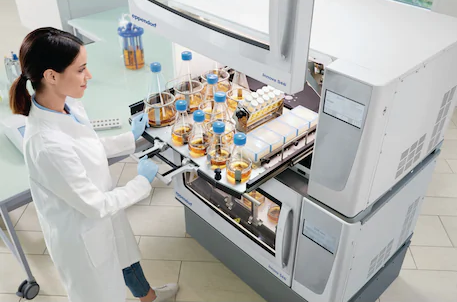

| Slide-out platform |
yes |
yes |

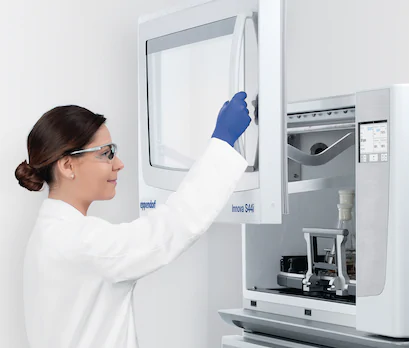

| Space-saving glide-up doors |
yes |
yes |
| Speed range |
2.5 cm orbit: 20 – 400 rpm, 5.1 cm orbit: 20 – 300 rpm |
2.5 cm orbit: 20 – 400 rpm, 5.1 cm orbit: 20 – 300 rpm |
| Steps per program |
unlimited |
unlimited |
| Stored programs |
unlimited |
unlimited |
| cETLus and CE marked |
yes |
yes |
| Agitation |
|
|
| Control accuracy |
±0.5 rpm |
±0.5 rpm |
| Control increments |
±1 rpm |
±1 rpm |
| Maximum platform load |
35.4 kg (78 lb) |
35.4 kg (78 lb) |
| Orbit |
2.5 cm (1 in) |
5.1 cm (2 in) |
| Speed |
2.5 cm (1 in) orbit: 20 – 400 rpm
5.1 cm (2 in) orbit: 20 – 300 rpm |
2.5 cm (1 in) orbit: 20 – 400 rpm
5.1 cm (2 in) orbit: 20 – 300 rpm |

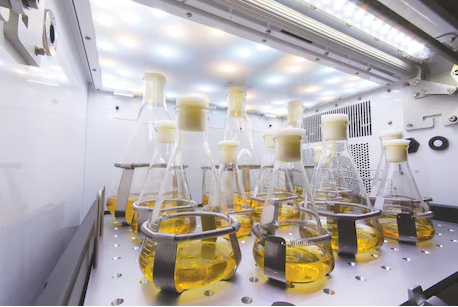

| Photosynthetic LED light bank |
|
|
| Intensity range |
15 to 150 PAR adjustable in increments of 1 parProgrammable (e.g. day night cycles) |
15 to 150 PAR adjustable in increments of 1 parProgrammable (e.g. day night cycles) |
| Main wavelength |
Wide band spectrum; 400 – 700 nm |
Wide band spectrum; 400 – 700 nm |
