Eppendorf SmartBlock™

Using different vessel sizes within your lab workflow?

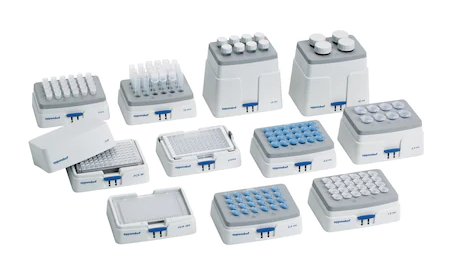

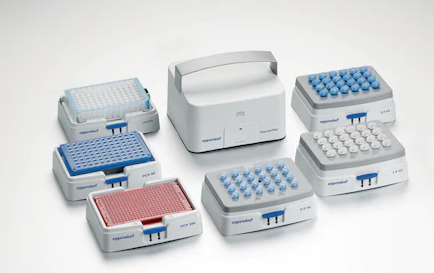

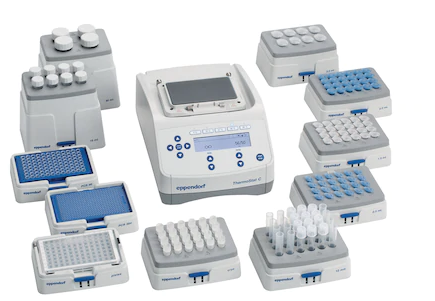

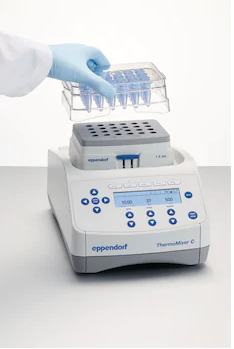

Flexibility has never been this easy. Eppendorf offers a broad range of Eppendorf SmartBlocks for tubes from 0.2 mL to 50 mL as well as plates (MTP, DWP, and PCR plates 96 / 384) to use with Eppendorf ^{ThermoMixer®} C and ThermoStat C. All Eppendorf SmartBlocks are equipped with the outstanding Eppendorf QuickRelease™ system that makes the block exchange super fast and easy.

No tool available?

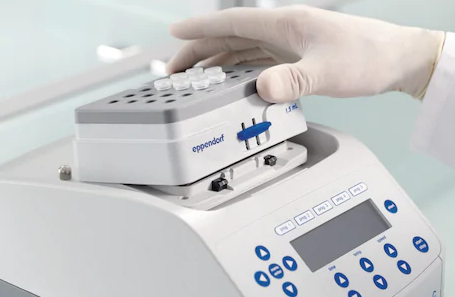

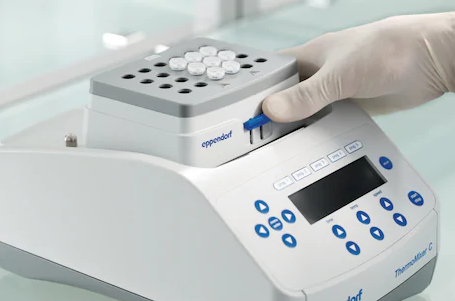

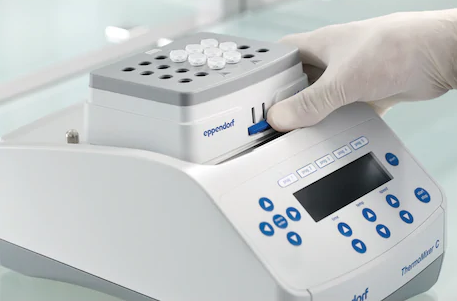

The Eppendorf SmartBlocks can easily be exchanged. Just press the lever on the front of the block, and the block can be removed – no tools are needed, done in seconds.

Eppendorf SmartBlock™

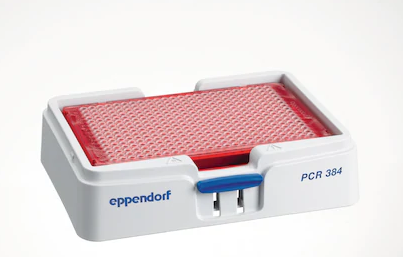

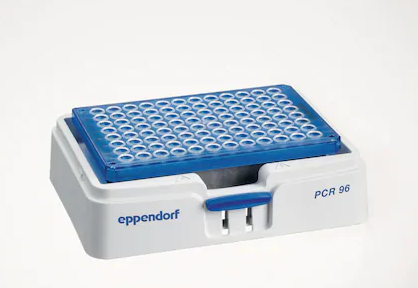

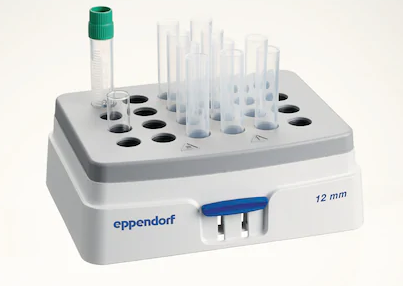

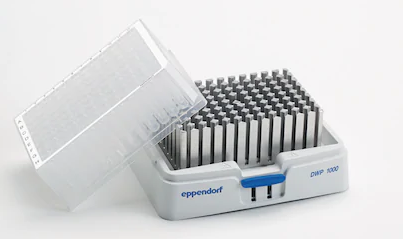

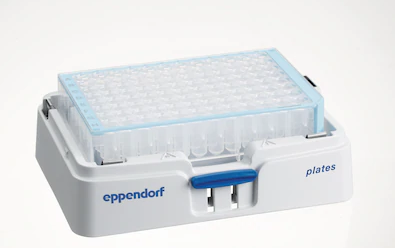

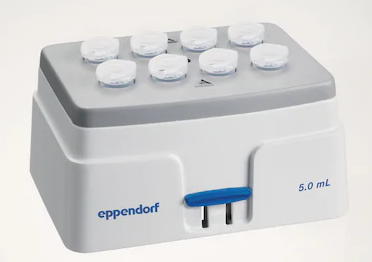

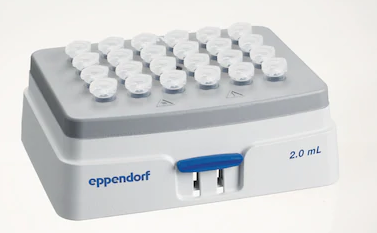

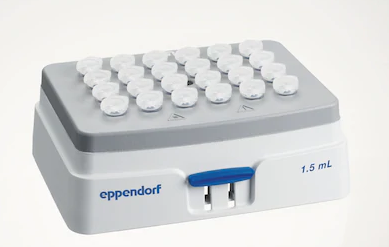

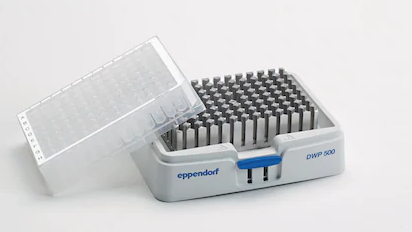

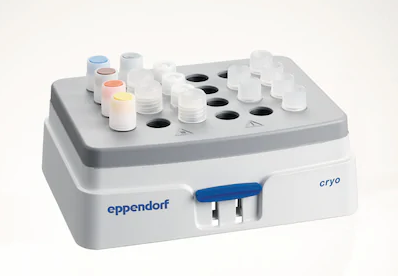

SmartBlock PCR 96	SmartBlock PCR 384	SmartBlock 5.0 mL	SmartBlock DWP 1,000	SmartBlock DWP 500	SmartBlock 1.5 mL	SmartBlock 0.5 mL	SmartBlock 2.0 mL	SmartBlock plates	SmartBlock 12 mm	SmartBlock 50 mL	SmartBlock 15 mL	SmartBlock cryo
Sample capacity	1 PCR plate 96	1 PCR plate 384	8 × 5 mL	Eppendorf Deepwell Plates 96/1,000 µL	Eppendorf Deepwell Plates 96/500 µL	24 × micro test tubes (1.5 mL)	24 × micro test tubes (0.5 mL)	24 × micro test tubes (2.0 mL)	1 × micro test plate / 1 × deepwell plate	24 × micro test tubes, diameter 12 mm	4 × 50 mL conical tubes	8 × 15 mL conical tubes	24 × cryo tubes (1.5/2.0 mL)
ThermoTop	yes	yes	–	yes	yes	yes	yes	yes	yes	–	–	–	–
SmartExtender	yes	yes	yes	yes	yes	yes	yes	yes	yes	yes	yes	yes	yes
ThermoMixer C / ThermoStat C	yes	yes	yes	yes	yes	yes	yes	yes	yes	yes	yes	yes	yes
Max. temp.	100 °C	100 °C	100 °C	100 °C	100 °C	100 °C	100 °C	100 °C	100 °C	110 °C³	100 °C	100 °C	110 °C³
Lid²	yes	yes	–	yes	yes	yes	yes	yes	yes	–	–	–	–
Max. speed	2,000 rpm	3,000 rpm	1,000 rpm	1,500 rpm	1,500 rpm	2,000 rpm	2,000 rpm	2,000 rpm	3,000 rpm¹	2,000 rpm	1,000 rpm	1,000 rpm	2,000 rpm

¹max. mixing frequency using DWP is 2,000 rpm (80°C and higher: limited to 1,000 rpm)
²Maximum mixing frequency is 2,000 rpm when lid is used
³Only available with ThermoStat C
