Himac Micro Ultracentrifuge CS150FNX - 150.000 rpm or (RCF) 1.050.000xg - World's highest speed and g-number

Beskrivning

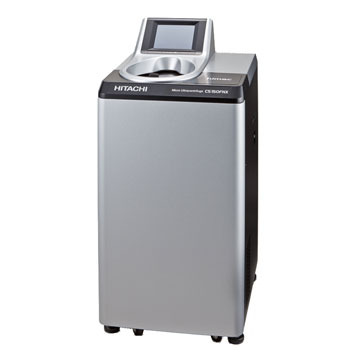

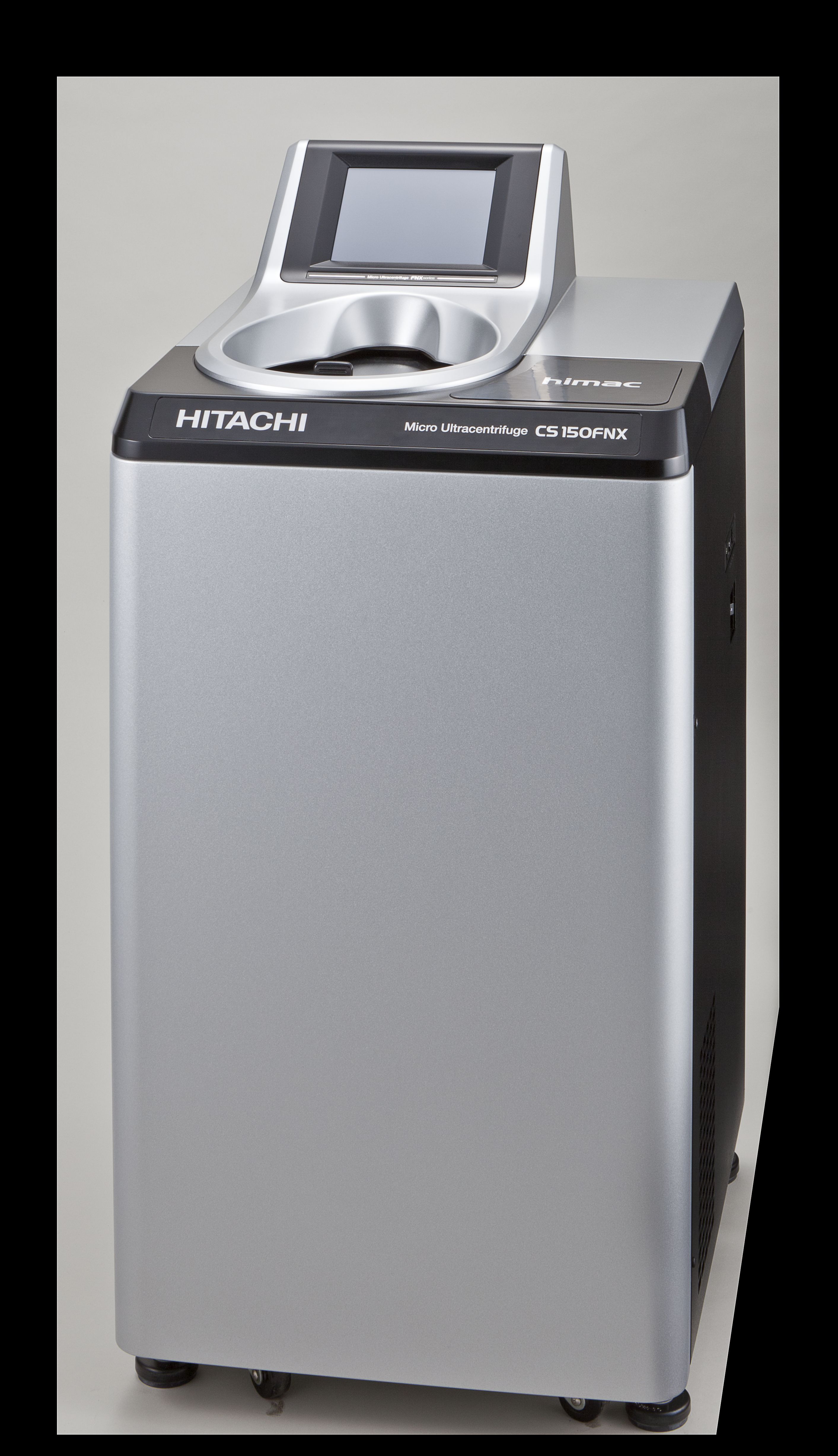

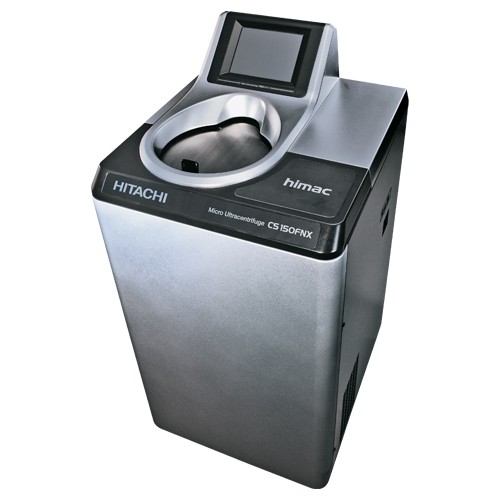

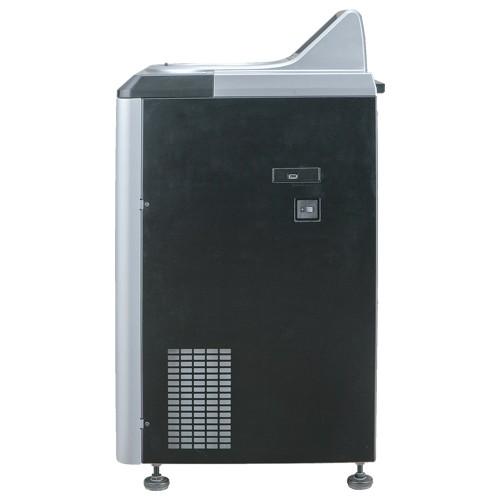

Himac Micro Ultracentrifuge CS150FNX – 150.000 rpm or (RCF) 1.050.000xg – World’s highest speed and g-number

A floor centrifuge with speed. The Hitachi Micro Ultracentrifuge CS150FNX is an award-winning centrifuge with extra everything. The centrifuge won a design award in 2012.

Speed 150,000 rpm or 1,050,000xg
Quiet
Compact design
Protection against imbalance
Easy to use and fast start-up time
Powerful vacuum pump
LCD display with touch function
Easy to set the timer
USB interface with USB port as standard

Himac Micro Ultracentrifuge CS150FNX – 150.000 rpm or (RCF) 1.050.000xg

Specification

Model	CS150FNX	CS120FNX
Max. speed (rpm)	150,000	120,000
Max.RCF (xg)	1,050,000 (S140AT rotor)	771,000 (S140AT rotor)
Speed control accuracy	±50 (5,000 to max. speed)
Max. capacity (nominal)	30ml x 6 tubes (S50A rotor)
Max. capacity (nominal) (Swinging bucket rotor)	7ml x 4 tubes (S50ST rotor)
Timer	1 min. to 99 hrs. and 59 min. with HOLD and RTC (real-time control) function
Vacuum system	Oil rotary vacuum pump and oil diffusion pump
Rotor temperature control range(ºC)	0 to + 40 (1 degree increment)
Rotor Cooling method	Thermo-module cooling system (HFC-free)

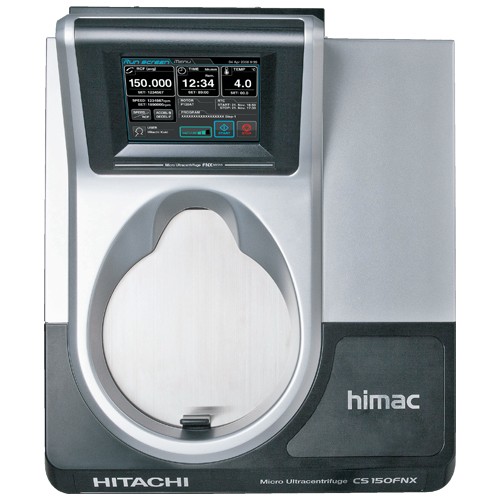

Screen display	Colour LCD (touch-sensitive)
Rotor setting method	Self – locking rotor system (no special tool required)
Operation noise (dB(A))*	45 *Measured 1 meter from front
Max. heat dissipation into room (kW)	0.7 or less
Drive unit warranty	5 years
Dimensions (mm)	440 (W) x 520 (D) x 910 (H), height to table 790
Floor area (m²)	0.53 (750 x 700 ㎜)
Weight (kg)	105
Power requirements	AC208, 220, 230, 240 V ±10%, 8 A ( 50/60 Hz), single phase
Standard	IEC61010-2-020, EN61326, CE marking qualified
Catalog	CS-FNX SERIES catalog (PDF:5,112kB)
